OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B

Name: OEM ODM Precision Injection Molding amp Clamshell Phone Front Shell 11 No21871B
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B from china suppliers

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 450.000 X 401.000

IMM Tonnage : 110T

Mold Weight : 390kg

Standard : LKM

Type : Three-plates mold

Gate : Side gate

Steel of cavity & core : Harden (1*2/S136)

Injection/runner type : Cold runner

Slide : 6

Lifter : 10

Contact Now

Clamshell Phone Front Shell (1*1)

No.21871-B

This is a three-plate mold manufactured by LKM. The mold base part number is DDI3045 709090 and the overall size is 350x450x401mm. The mold is designed for a minimum tool life of 500,000 shots. It features a side pinpoint gate that turns into a side gate to fill the cavity. The mold weighs approximately 390kg.

OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B

The cavity and core have undergone hardening treatment (1*2/S136) for increased wear resistance. The mold utilizes a cold runner injection/runner system. It is rated for an injection molding machine tonnage of 110 tons.

OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B

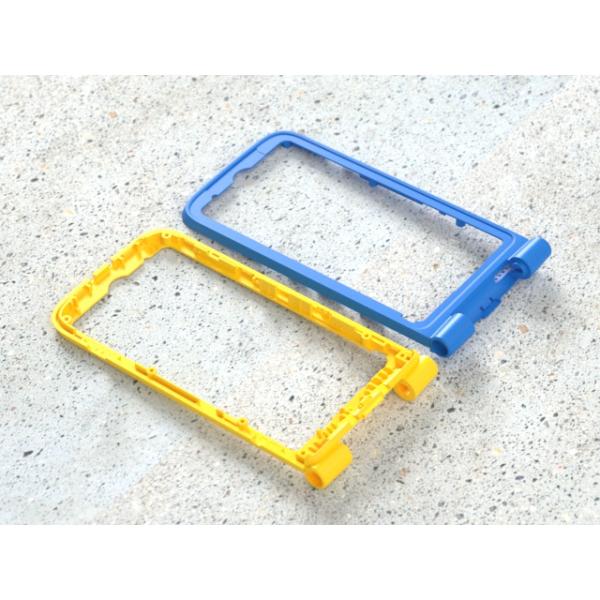

The mold is designed to produce parts measuring 55.55x11.24x108.75mm and weighing 5 grams per part. The entire mold surface, including the cavity and core, has undergone A surface EDM finishing with VDI24# roughness. This results in a smoother mold surface, molded parts with less flow marks and gas marks.

OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B

Display diagram
