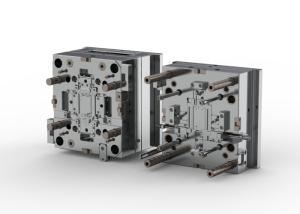

Transparent Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

Phone Cover Insert Injection Molding

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: Transparent Clamshell Phone Back Cover 11 Cold runner Threeplates mold No21870
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400.00 X 400.00 X 426.00

IMM Tonnage : 110T

Mold Weight : 418kg

Mold base P/N : DDI3540 70100100

Standard : LKM

Type : Three-plates mold

Part material : PC+10%GF

Slide/Lifter : 7/2

Injection/runner type : Cold runner

Steel of cavity & core : Harden (1*2/S136)

Contact Now

Transparent Clamshell

Phone Back Cover (1*1)

No.21870

Mold size: 400x400x426 Mold base P/N: DDI3540 70100100 Standard: LKM Mold weight: 418kg			Gate: The mold with pin point gate turns to the side gate fiiling system.The sprue bushing is set in center of mold base, and the mold is more flexible in structure



Standard			Type
LKM			Three-plates mold
IMM Tonnage			Part material
110T			PC+10%GF
Part net weight			Part size
4.8g			55.51X11.20X107.96mm

Transparent Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

Transparent Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

Injection/runner type: Cold runner
Steel of cavity & core			Harden (1*2/S136)
Harden with S136, with good comprehensive mechanical property, high polishing performance, high hardness, anti-wearing, anti-corrosion.

Transparent Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

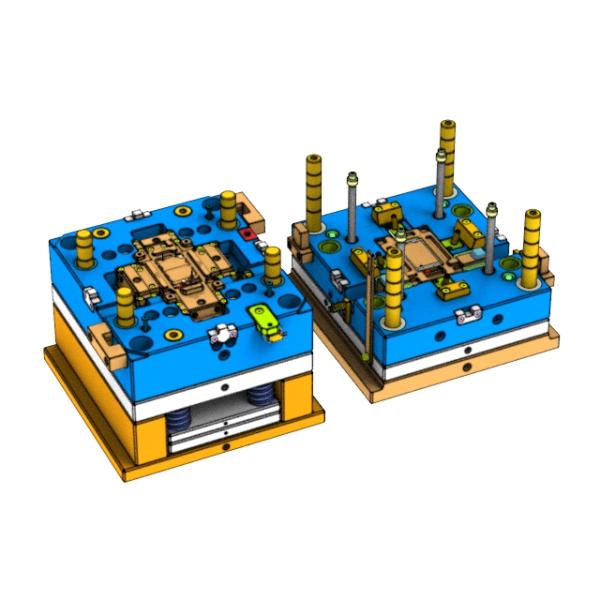

Display diagram

Product Tags:

Surface finish:
A surface EDM with VDI27# to improve the roughness of the mold,

make the surface smooth without pits, and reduce the surface friction,

so that the part can be molded to obtain a smoother surface avoding

stick to the mold surface.
