Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848

Brand Name : Chitwing

Model Number : Digital Pen

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 150.000 X 220.000 X 177.000mm

IMM Tonnage : BOY10(T)

Mold Weight : 47(KG)

Type : Two-plates mold

Standard : LKM

Tool life : 500k shots

Part material : PA

Gate : Sub gate

Contact Now

Transparent Stylus Tip (1*8)

No.24848

Brand Chitwing Standard Type Part material Mold weight
Origin Guangdong, China LKM

Two-plates

mold

 PA 47kg
Injection/runner type Cold runner

Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848

Tool length/width/height IMM Tonnage
150/220/177 BOY10T

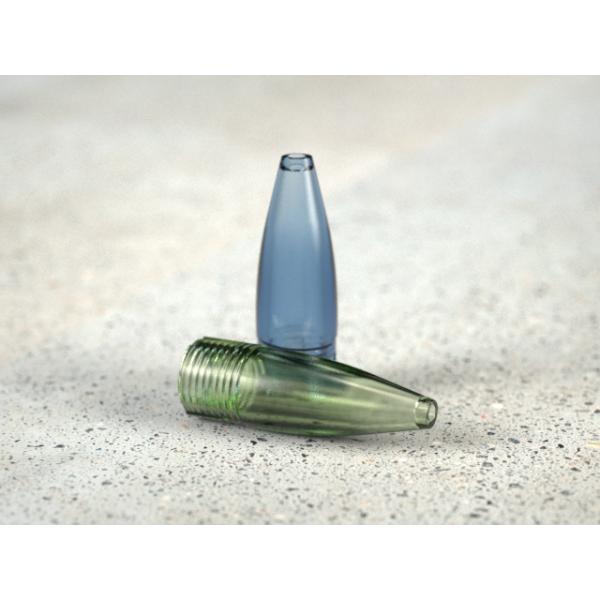

☆ Part size:Φ6.0*10.0mm

☆ Part weight:0.1g

☆ Features: In-mold unscrewing

Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848

A surface EDM with Charmilles VDI18; harden the cavity and core with 1*8/S136, so that their hardness ≥ 50HRC, and the hardened surface > 600HV; the mold surface is smooth and free of roughness; with high hardness and anti-wearing performance, good strength, and uniform wall thickness. The molded part is easy to unscrew, with precise thread and clear details w/o flow marks and gas marks; suitable for mass production with high quality.

Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848

Display diagram

Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848Transparent Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
