OEM / ODM ： Cold Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

Name: OEM ODM Cold Runner Injection Molding amp Mobile Phone TP Trim 11 No23854
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Cold Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854 from china suppliers

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400.00 X 450.00 X 331.00

IMM Tonnage : 180T

Mold Weight : 370kg

Runner : Cold runner

Mould life : 500，000 shots

Mould base : LKM

Mould material : Harden（1*4/S136）

Design software : 3D:UG 4.0/2D:CAD

Gate type : Side gate(easy to process)

Part material : PC+10% GF

Contact Now

Mobile Phone TP Trim (1*1)

No.23854

Adopt standard mold base P/N: CI3545.60110100

[Mold size]
L400xW450xH331mm

[Standard]
LKM

[Mold net weight]
370kg

OEM / ODM ： Cold Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

[Injection/runner type]
Cold runner

[Type]
Two-plates mold

[Gate]
Side gate

OEM / ODM ： Cold Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

[Tool life]
500K shots

[IMM tonnage]
180

[Part material]
PC+10%GF

[Steel of cavity and core]:Harden (1*1/S136)

[Surface finish]:

A surface polished to 1000# sandpaper
Secondary surface EDM with VDI21# (Makino)

OEM / ODM ： Cold Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

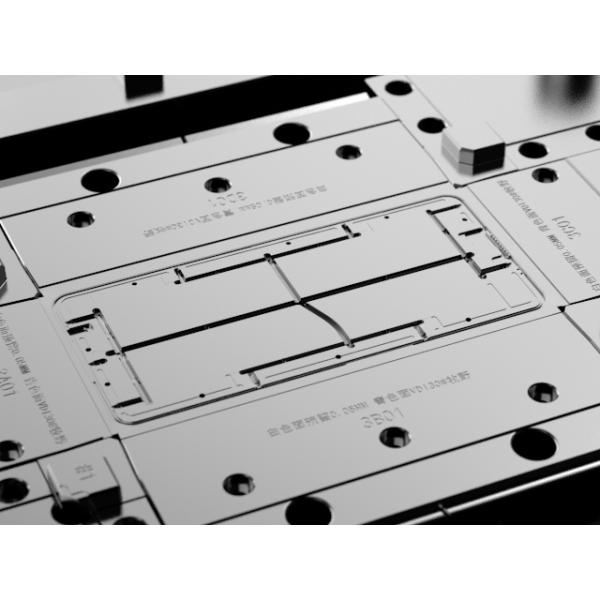

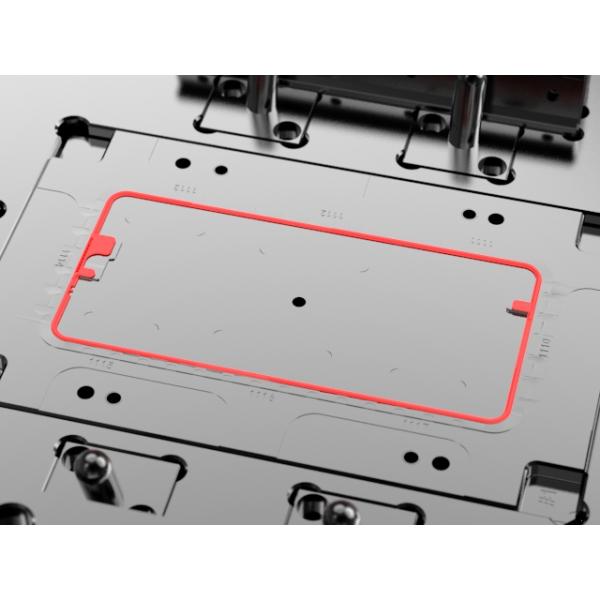

Display diagram
