OEM / ODM ： Custom Electronic Enclosures & Transparent top cover (1*2) No.23392

OEM / ODM ： Custom Electronic Enclosures & Transparent top cover (1*2) No.23392

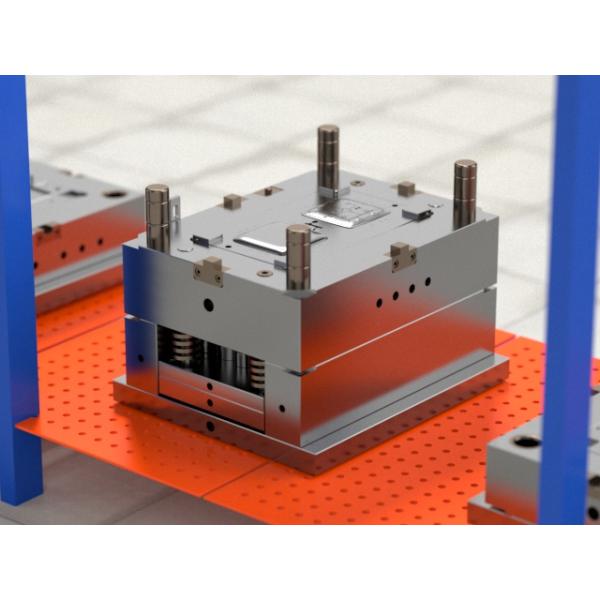

Two Plate Single Cavity Injection Mold

500k Shots Single Cavity Injection Mold

Cold Runner metal injection molding

OEM / ODM ： Custom Electronic Enclosures & Transparent top cover (1*2) No.23392 Images

Product Categories

Precision Injection Molding [155]
Hot Runner Injection Molding [37]
Cold Runner Injection Molding [59]
Single Cavity Injection Mold [43]
Insert Injection Molding [24]
ABS Injection Molding [44]
Polypropylene Injection Molding [10]
Multi Cavity Injection Mold [52]
Double Injection Molding [32]
Metal Stamping Molds [4]

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Custom Electronic Enclosures amp Transparent top cover 12 No23392
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Custom Electronic Enclosures & Transparent top cover (1*2) No.23392 from china suppliers

Brand Name : Chitwing

Model Number : Router

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350 X 400 X 341mm

IMM Tonnage : 180(T)

Mold Weight : 300(KG)

Standard : LKM

Type : Two-plates mold

Gate : Sub gate

Lifter : 14 for each cavity

Injection/runner type : Cold runner

Mold type : Custom mold

Contact Now

Transparent top cover (1*2)

No.23392

☆ Brand: Chitwing

☆ Standard mold base P/N: CI3040.6010090

☆ Origin: Guangdong, China

☆ Standard: LKM

☆ Type: Two-plates mold

☆ Injection/Runner Type: Cold runner

Size	Length	350
	Width	400
	Height	341
Net weight	300kg
IMM Tonnage	180T

Part material	PC+ABS
Size	Length	92
	Width	9.2
	Height	92
Net weight	20.5g

Gate

Sub gate

Lifter

14 for each cavity

Tool life

500k shots

OEM / ODM ： Custom Electronic Enclosures & Transparent top cover (1*2) No.23392

Surface finish

A surface polished to 800#

sandpaper and textured

A large surface EDM with

VDI27# (Makino)

Other large surfaces EDM

with VDI30# (Makino)

OEM / ODM ： Custom Electronic Enclosures & Transparent top cover (1*2) No.23392

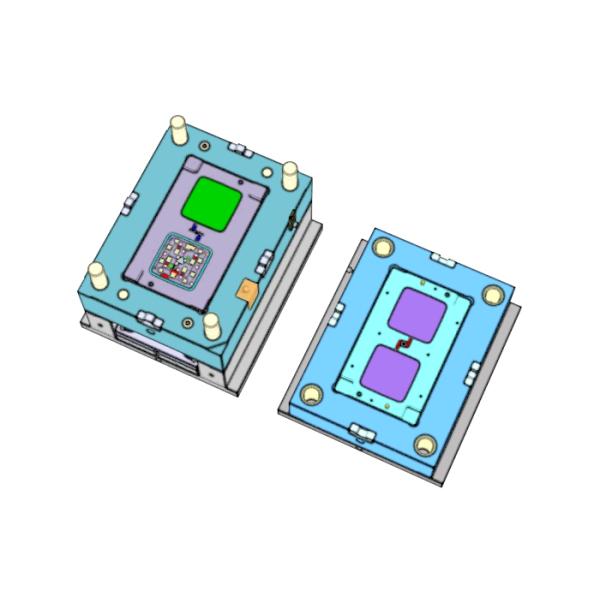

Display diagram

Product Tags:

The core, sub-inserts, movable inserts, ejector pin and sprue bush are made of steel > 40HRC. Harden the mold base, cavity and core to have high hardness, anti-wearing and anti-fatigue performance; with good seal, no leakage; the molded part is smooth w/o flash.
