OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400 X 450 X 456

IMM Tonnage : 110T

Mold Weight : 520kg

Gate : Cashew gate

Net weight : 520kg

Part material : TPU A80

Type : Two-plates mold

Cavity : Harden (1*1/S136)

Core : Harden (1*1/S136)

Contact Now

POA Rear Pad (1*1)

No.22730-C

OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C

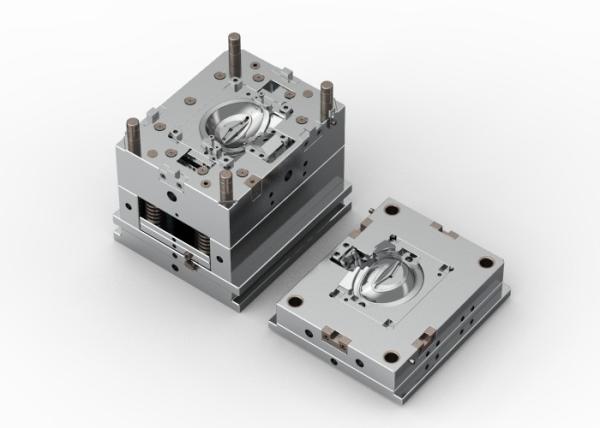

The mold is constructed using a standard mold base (CI3545) with dimensions A = 70, B = 140, and C = 120. It has a hardened surface and has undergone thorough quality checks to ensure precise results and a tool longevity of up to 500,000 shots. The mold boasts exceptional sealing capabilities with no risk of overflow. Measuring 400 x 450 x 456mm, it features a cashew gate and weighs 520kg. This two-plates mold has an A surface EDM finish to VDI27# standard. The cavity and core are crafted from hardened material (1*1/S136) and employs a cold runner system.

OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C

The part material used for injection molding is TPU A80, weighing 58g and having dimensions of 158.75 x 127.54 x 50.81mm.

OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C

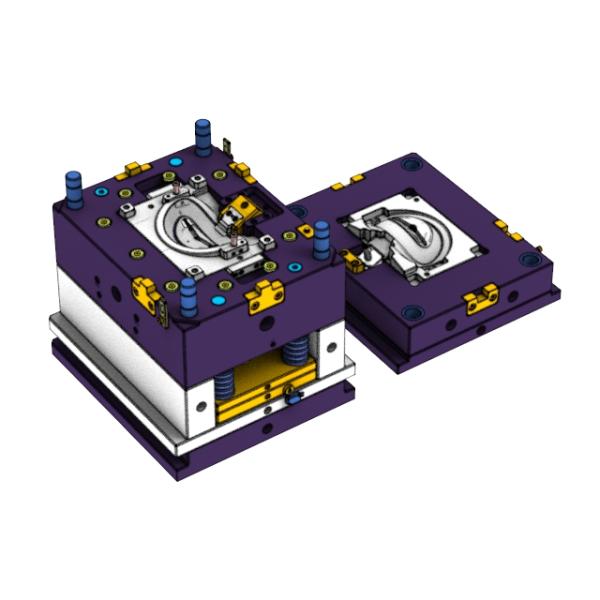

Display diagram

OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C

OEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-COEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-COEM / ODM Single Cavity Injection Mold POA Rear Pad 1*1 No 22730-C
