OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B

Brand Name : Chitwing

Model Number : Camera

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.00 X 400.00 X 351.00

IMM Tonnage : 110T

Mold Weight : 277kg

Slide : 2

Angled slide : 2

Lifter : 2

Gate : sub gate

Contact Now

Left + Right Transparent Eye Shell(1+1)

No.23056-B

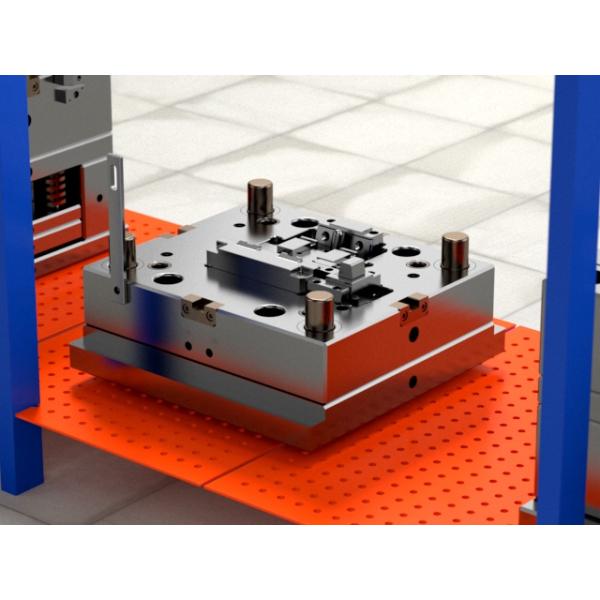

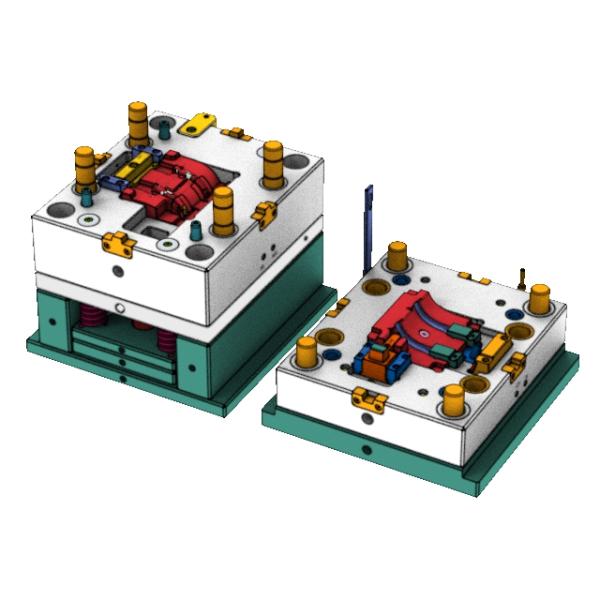

This mold is a custom mold base called ED3035 1 set A70-B100-C100. It is designed to produce parts with a size of 350x400x351 and a net weight of 277kg. The mold uses a sub gate, which is flexible in position and self-degating to minimize gate marks. It is a two-plates mold, specifically a side gate mold, following the general plastic mold standard LKM in China. The mold is suitable for an injection molding machine with a tonnage of 110T. The part material used is PC, and the injection/runner type is a hot runner system. The mold also includes 2 slides, 2 angled slides, and 2 lifters.

OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B

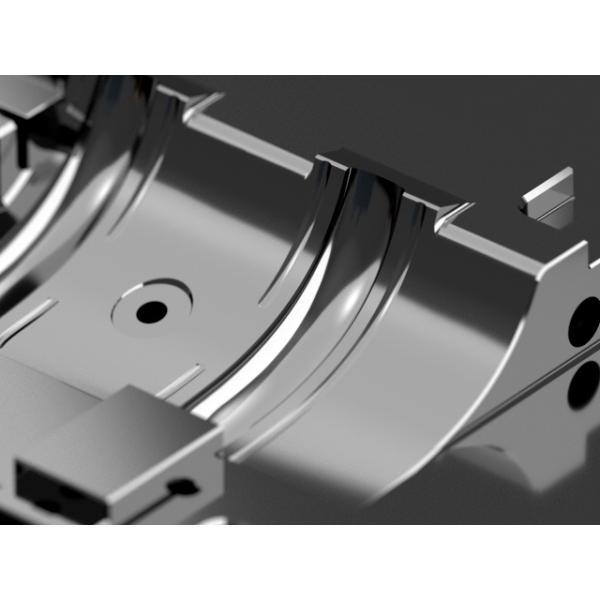

The surface of the molded parts is treated with a VDI24 etch, resulting in a nice and clear part surface without flow marks. The cavity and core of the mold are made of 1+1/S136 hardened steel, providing high hardness and good anti-wearing and anti-corrosion performance. The mold has a tool life of 500k shots.

OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B

The molded parts produced by this mold have a weight of 2.5g and a size of 58.64 X 16.99 X 37.70mm.

OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-BOEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-BOEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-BOEM / ODM ： Cold Runner Injection Molding & Left + Right Transparent Eye Shell 1+1 No 23056-B
